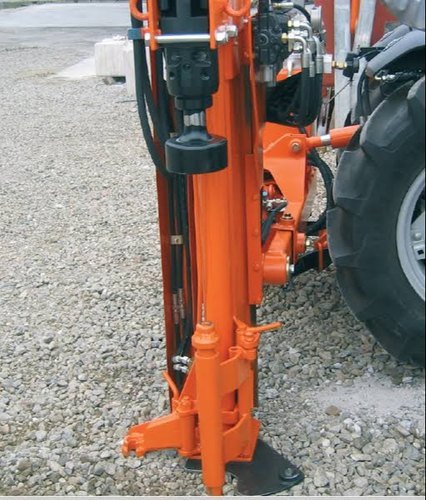

Name: Portable Geotechnical Investigation Drilling Rig Ros-150
SKU: 4627
Availability: InStock

Portable Geotechnical Investigation Drilling Rig Ros-150

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist

Have a Question? Ask a Specialist

+1-(4)-TOOL-EQUIP Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

Basic Info.

Model NO.

ROS-150

Type

Oil Drilling Rig

Transport Package

Wooden Box

Specification

1.2

Trademark

ROSCHEN

Origin

China

HS Code

854153210

Production Capacity

200

Product Description

Specifications

1. OEM drilling rig for rock
2. Small and light, convenient operation
3. Steady performance and long life

Advantage:

1. OEM products
2. Small and light, convenient operation
3. Steady performance and long life

Application:

The ROS-150 drill is a kind of multi-use portable engineering drill. It is mostly used for the engineering geological exploration and pile examination in railway, bridge, traffic, hydro-electricity or industrial and civil architecture. It can also used in minor diameter foundation piles drilling.

Data of drilling machine

Basic Technical Parameters
Model: Portable Geotechnical Investigation Drilling Rig ROS-150
Drilling Depth	150m
Opening Hole diameter	300mm
Drill pipe diameter	42mm
Gross weight of drilling machine	500kg
Dimension (LWH)	205011801420mm
Revolving plate
Ratate Speed (r/min)	60,200,400,610,1100 (r/min)
Maximum Torque	1800N*m
Drilling travel	450mm
Maximum Cylinder lifting force	20000N
Maximum Cylinder driving force	30000N
Lifter
Lifting capacity( single pipe, low speed)	24000N
Bobbin line speed	0.2, 0.72, 1.26, 2.8m/s
Bobbin Diameter	140mm
Rope Diameter	11mm
Rope Capacity	26m
Lifting Capacity(single pipe)	55KN
Drilling tower
Type	Steel pipe quadripod
Height	6m
Drive motor
Type	S195 Diesel
Rate power	8.82kw
Weight	145kg
